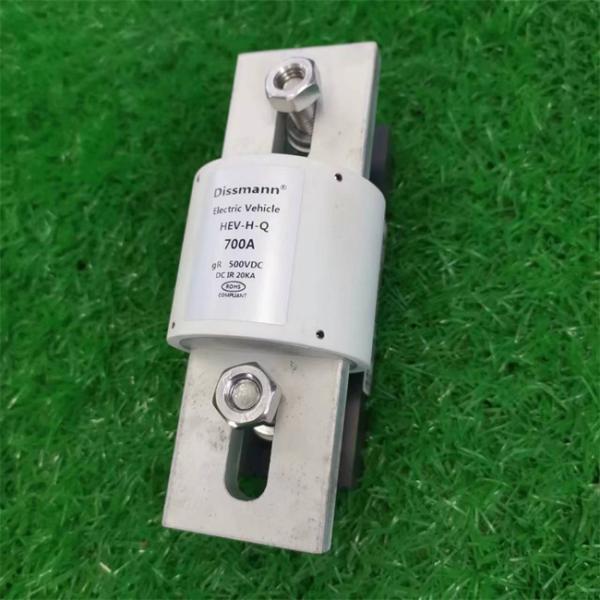

Dissmann® DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified 700Amp
DC500V 700Amp HEV fuse for electric vehicle
HEV FUSES IN DIFFERENT AMP 500A/300/100A
Basic information of the AC/DC500V HEV fuse:
- Type:automobile fuse (bolt type installation)
- Dimensions and performance conforming to UL248
- Rated voltage: AC/DC500V,
- Rated current: 5A~800A,
- Breaking capacity: AC100KA, DC50KA (time constant ≤15ms)
- Conform to EU and China RoHS directives
- The executive standard is UL248-20,ISO8820,JASO-D622, TUV certification number: J 50458819 0001
- This series of products are automobile fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to electric vehicles, energy storage system and charging modules.
Physics drawing of the dimension of the HEV-H-Q series fuse:
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HZ1 | 81 | 22 | 40 | 55 | 66.5 | 9 | 15 | 3.3 | 14.75 |
| HZ2 | 92.2 | 25 | 53 | 68 | 77 | 9 | 18 | 3.2 | 13.5 |
| HZ3 | 92.2 | 33 | 53 | 68 | 75 | 9 | 22 | 5 | 12.5 |
| HZ4 | 109 | 38 | 53 | 69 | 89.5 | 10.5 | 25 | 6 | 20.7 |
| HZ5 | 110 | 50 | 53 | 70.5 | 90 | 10.5 | 38 | 6 | 20.7 |
| HZ6 | 161 | 63 | 53 | 87 | 126 | 13.5 | 50 | 10 | 34 |
| HZ7 | 177 | 76 | 81.5 | 113.5 | 139 | 16 | 60 | 10 | 28.4 |
Ordinary produc type you can choose from our factory:
| Model | Rated Current A | I2t(A2s) | Power dissipation W | Size code | Install |
| Pre-arc | Total |
| HEV-H-Q-35 | 35A | 33 | 145 | 8.5 | HZ1 | Mounting Bolt M8 recommended torque 11N·m |
| HEV-H-Q-40 | 40A | 74 | 315 | 8 |
| HEV-H-Q-45 | 45A | 100 | 430 | 8 |
| HEV-H-Q-50 | 50A | 130 | 650 | 8.5 |
| HEV-H-Q-60 | 60A | 200 | 880 | 10 |
| HEV-H-Q-70 | 70A | 210 | 900 | 10.5 | HZ2 |
| HEV-H-Q-80 | 80A | 300 | 1360 | 12.5 |
| HEV-H-Q-90 | 90A | 350 | 1500 | 15.5 |
| HEV-H-Q-100 | 100A | 460 | 1950 | 17.5 |
| HEV-H-Q-125 | 125A | 750 | 3430 | 26 | HZ3 |
| HEV-H-Q-150 | 150A | 1000 | 4450 | 31 |
| HEV-H-Q-175 | 175A | 1400 | 6100 | 36 |
| HEV-H-Q-200 | 200A | 1800 | 8300 | 41 |
| HEV-H-Q-225 | 225A | 4600 | 23000 | 39 | HZ4 | Mounting Bolt M10 recommended torque 20N·m |
| HEV-H-Q-250 | 250A | 6250 | 32100 | 41 |
| HEV-H-Q-275 | 275A | 7800 | 40000 | 46 |
| HEV-H-Q-300 | 300A | 9600 | 49000 | 52 |
| HEV-H-Q-325 | 325A | 13500 | 63000 | 54 |
| HEV-H-Q-350 | 350A | 14000 | 72000 | 59 |
| HEV-H-Q-400 | 400A | 18500 | 95500 | 66 |
| HEV-H-Q-450 | 450A | 24000 | 125000 | 75 | HZ5 |
| HEV-H-Q-500 | 500A | 28500 | 147000 | 84 |
| HEV-H-Q-600 | 600A | 40500 | 203000 | 108 |
| HEV-H-Q-700 | 700A | 54000 | 295000 | 122 | HZ6 | Mounting bolt M12 recommended torque 28N·m |
| HEV-H-Q-800 | 800A | 75000 | 406000 | 130 |
| HEV-H-Q-1000 | 1000A | 90000 | 430000 | 146 | HZ7 |
| HEV-H-Q-1200 | 1200A | 120000 | 590000 | 180 |
Current Characteristic Curve of the HEV-H-Q series fuses:

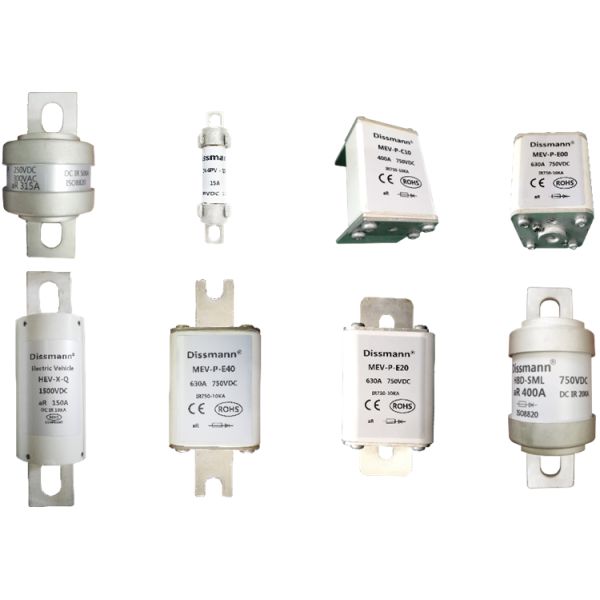

More automotive fuses for the electric vehicle:
More other fuses and fuse holder you can choose from our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
Certifications of the fuse products:
Certifications we've got:
UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.
